LITW
Backhoe
Rugged appearance and improved operator
comfort and convenience set this new LITW
Backhoe apart from the competition!
LITW Backhoe
LITW Backhoe
3 Point Mount or subframe
Duel Stick Control
Nimco Control Valve
180 Degree Swing Arc
JIC (USA) Fittings and Hoses

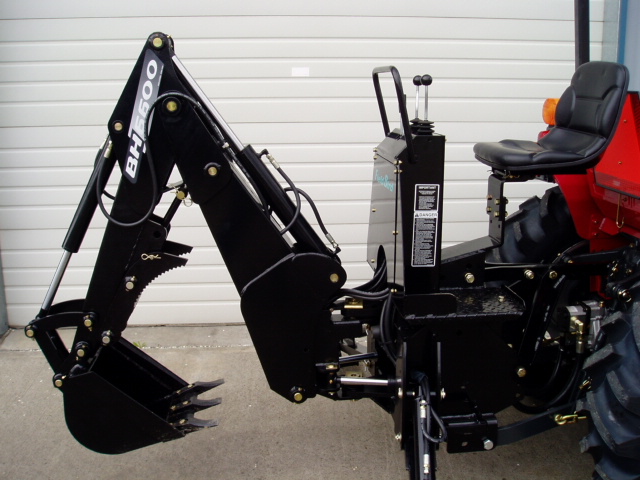

LITW Backhoe

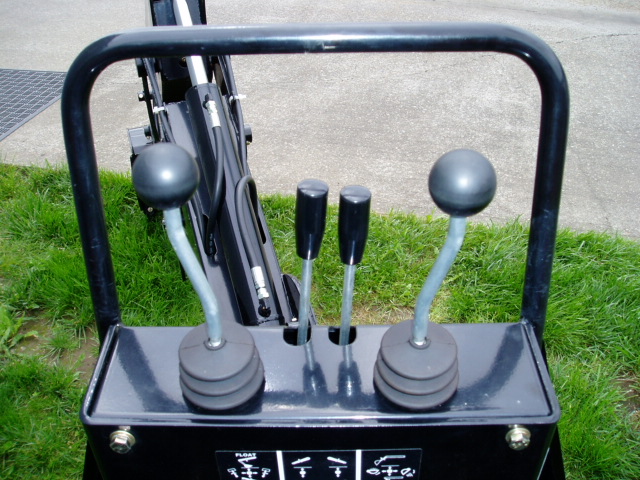

LITW Backhoe Control

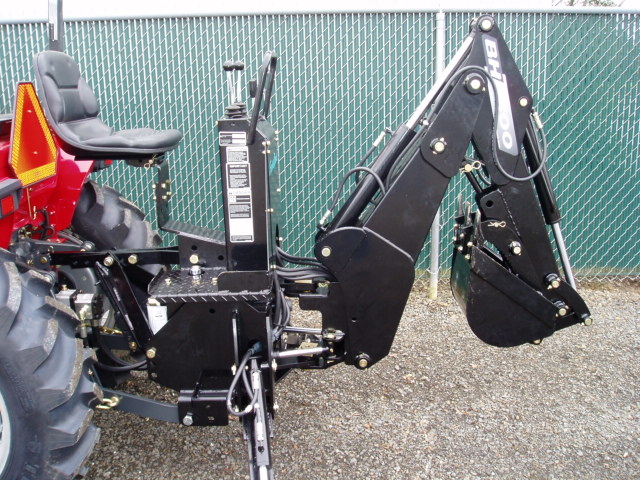

LITW Backhoe
Optional Attachments:

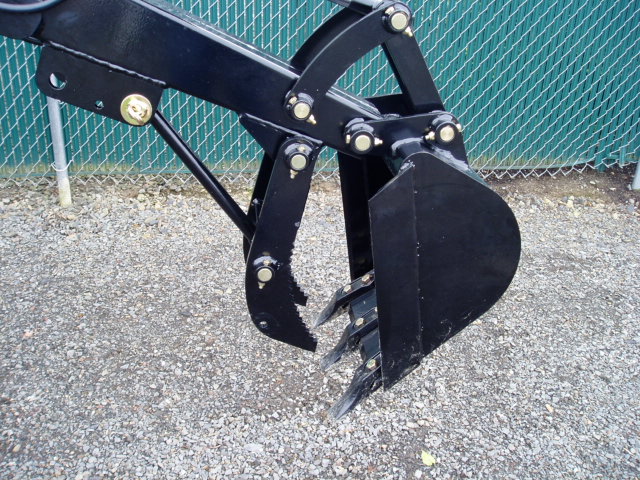

Thumb Attachment
PTO Driven Hydraulic Pump

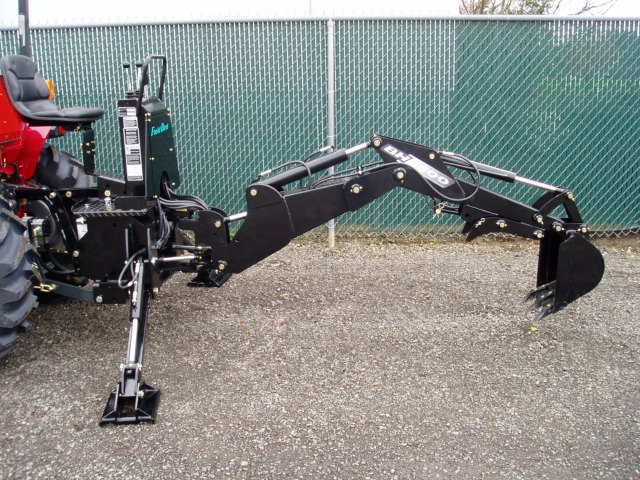

LITW Backhoe

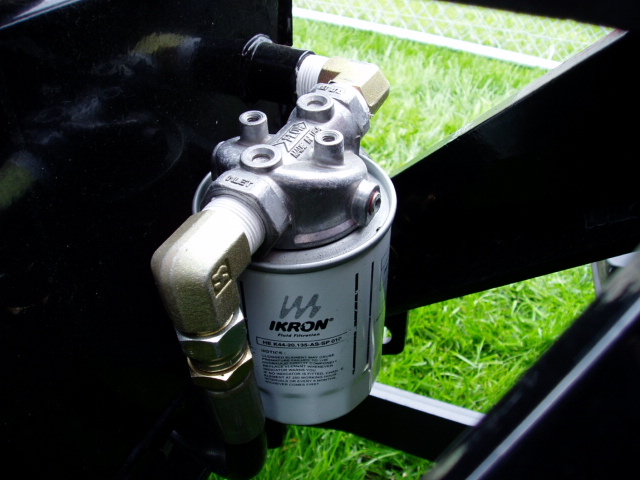

With purchase of pump,
hydraulic filter and
reservoir are standard
and entire system
becomes self contained.
PTO Driven
Hydraulic Pump
Thumb
LITW Backhoe Specifications
LITW Backhoe Specifications
Series
 BH6600
 BH7600
Maximum Digging Depth
 7'0"
 7:7"
A. Digging Depth (two foot flat bottom)
 6'11"
 7'4"
B. Swing Arc
 180 Degrees
 180 Degrees
C. Loading Height (bucket at 60 degrees)
 4'9"
 5'3"
D. Reach from Center Line of Swing Pivot
 9'0"
 9'8"
E. Transport Height (maximum)
 5'4"
 5'9"
F. Bucket Rotation
 172 Degrees
 172 Degrees
G. Loading Reach (bucket at 60 degrees)
 3'2"
 3'8"
H. Transport Overhang
 3'6"
 4'0"
I. Undercut
 2'9"
 3'0"
J. Stabilizer Spread, down position
 6'11"
 6'11"
K. Stabilizer Spread, up position
 4'4"
 4'4"
Bucket Cylinder Digging Force
 2450 lbs
 2840 lbs
Dipperstick Cylinder Digging Force
 1250 lbs
 2005 lbs
Shipping Weight (less bucket)
 960 lbs
 1025 lbs
Hydraulic Volume requirements
 4 to 5 GPM
 5 to 6 GPM
Hydraulic Pressure Requirements
 2250 psi
 2250 psi
Recommended Tractor HP Requirements
 18 - 35 HP
 25 - 45 HP
  • Ideal for nurseries and small farms.  The BH6600 excels at a
    variety of digging application.
  • Outstanding value with substantially more power on the
    BH7600.
  • 1 Year Limited Warranty
